Product Description

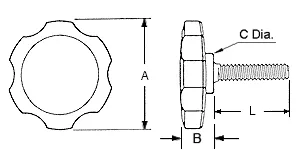

DIAGRAMA
| No. de parte | Rosca | Longitud | Estilo | Color | Material del tornillo | Dimension A | Dimension B | Dimension C |
|---|---|---|---|---|---|---|---|---|
| 907B-2520-0.37A | 1/4 – 20 | 3/8″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-0.37S | 1/4 – 20 | 3/8″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-0.37Z | 1/4 – 20 | 3/8″ | Rosette | Black | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-0.50A | 1/4 – 20 | 1/2″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-0.50S | 1/4 – 20 | 1/2″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-0.50Z | 1/4 – 20 | 1/2″ | Rosette | Black | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-0.62A | 1/4 – 20 | 5/8″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-0.62S | 1/4 – 20 | 5/8″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-0.62Z | 1/4 – 20 | 5/8″ | Rosette | Black | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-0.75A | 1/4 – 20 | 3/4″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-0.75S | 1/4 – 20 | 3/4″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-0.75Z | 1/4 – 20 | 3/4″ | Rosette | Black | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-0.87A | 1/4 – 20 | 7/8″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-0.87S | 1/4 – 20 | 7/8″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-0.87Z | 1/4 – 20 | 7/8″ | Rosette | Black | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-1.00A | 1/4 – 20 | 1″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-1.00S | 1/4 – 20 | 1″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-1.00Z | 1/4 – 20 | 1″ | Rosette | Black | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-1.25A | 1/4 – 20 | 1-1/4″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-1.25S | 1/4 – 20 | 1-1/4″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-1.25Z | 1/4 – 20 | 1-1/4″ | Rosette | Black | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-1.50A* | 1/4 – 20 | 1-1/2″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-1.50S* | 1/4 – 20 | 1-1/2″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-1.75A* | 1/4 – 20 | 1-3/4″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-1.75S* | 1/4 – 20 | 1-3/4″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-2.00A* | 1/4 – 20 | 2″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-2.00S* | 1/4 – 20 | 2″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-2.50A* | 1/4 – 20 | 2-1/2″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-2.50S* | 1/4 – 20 | 2-1/2″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-3.00A* | 1/4 – 20 | 3″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2520-3.00S* | 1/4 – 20 | 3″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2528-0.37A | 1/4 – 28 | 3/8″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2528-0.37S | 1/4 – 28 | 3/8″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2528-0.37Z | 1/4 – 28 | 3/8″ | Rosette | Black | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2528-0.50A | 1/4 – 28 | 1/2″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2528-0.50S | 1/4 – 28 | 1/2″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2528-0.50Z | 1/4 – 28 | 1/2″ | Rosette | Black | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2528-0.62A | 1/4 – 28 | 5/8″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2528-0.62S | 1/4 – 28 | 5/8″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2528-0.62Z | 1/4 – 28 | 5/8″ | Rosette | Black | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2528-0.75A | 1/4 – 28 | 3/4″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2528-0.75S | 1/4 – 28 | 3/4″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2528-0.75Z | 1/4 – 28 | 3/4″ | Rosette | Black | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2528-0.87A | 1/4 – 28 | 7/8″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2528-0.87S | 1/4 – 28 | 7/8″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2528-0.87Z | 1/4 – 28 | 7/8″ | Rosette | Black | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2528-1.00A | 1/4 – 28 | 1″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2528-1.00S | 1/4 – 28 | 1″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2528-1.00Z | 1/4 – 28 | 1″ | Rosette | Black | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2528-1.25A | 1/4 – 28 | 1-1/4″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2528-1.25S | 1/4 – 28 | 1-1/4″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907B-2528-1.25Z | 1/4 – 28 | 1-1/4″ | Rosette | Black | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-0.37A | 1/4 – 20 | 3/8″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-0.37S | 1/4 – 20 | 3/8″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-0.37Z | 1/4 – 20 | 3/8″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-0.50A | 1/4 – 20 | 1/2″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-0.50S | 1/4 – 20 | 1/2″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-0.50Z | 1/4 – 20 | 1/2″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-0.62A | 1/4 – 20 | 5/8″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-0.62S | 1/4 – 20 | 5/8″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-0.62Z | 1/4 – 20 | 5/8″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-0.75A | 1/4 – 20 | 3/4″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-0.75S | 1/4 – 20 | 3/4″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-0.75Z | 1/4 – 20 | 3/4″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-0.87A | 1/4 – 20 | 7/8″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-0.87S | 1/4 – 20 | 7/8″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-0.87Z | 1/4 – 20 | 7/8″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-1.00A | 1/4 – 20 | 1″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-1.00S | 1/4 – 20 | 1″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-1.00Z | 1/4 – 20 | 1″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-1.25A | 1/4 – 20 | 1-1/4″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-1.25S | 1/4 – 20 | 1-1/4″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-1.25Z | 1/4 – 20 | 1-1/4″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-1.50A* | 1/4 – 20 | 1-1/2″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-1.50S* | 1/4 – 20 | 1-1/2″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-1.75A* | 1/4 – 20 | 1-3/4″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-1.75S* | 1/4 – 20 | 1-3/4″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-2.00A* | 1/4 – 20 | 2″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-2.00S* | 1/4 – 20 | 2″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-2.50A* | 1/4 – 20 | 2-1/2″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-2.50S* | 1/4 – 20 | 2-1/2″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-3.00A* | 1/4 – 20 | 3″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2520-3.00S* | 1/4 – 20 | 3″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2528-0.37A | 1/4 – 28 | 3/8″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2528-0.37S | 1/4 – 28 | 3/8″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2528-0.37Z | 1/4 – 28 | 3/8″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2528-0.50A | 1/4 – 28 | 1/2″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2528-0.50S | 1/4 – 28 | 1/2″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2528-0.50Z | 1/4 – 28 | 1/2″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2528-0.62A | 1/4 – 28 | 5/8″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2528-0.62S | 1/4 – 28 | 5/8″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2528-0.62Z | 1/4 – 28 | 5/8″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2528-0.75A | 1/4 – 28 | 3/4″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2528-0.75S | 1/4 – 28 | 3/4″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2528-0.75Z | 1/4 – 28 | 3/4″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2528-0.87A | 1/4 – 28 | 7/8″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2528-0.87S | 1/4 – 28 | 7/8″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2528-0.87Z | 1/4 – 28 | 7/8″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2528-1.00A | 1/4 – 28 | 1″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2528-1.00S | 1/4 – 28 | 1″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2528-1.00Z | 1/4 – 28 | 1″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2528-1.25A | 1/4 – 28 | 1-1/4″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2528-1.25S | 1/4 – 28 | 1-1/4″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907G-2528-1.25Z | 1/4 – 28 | 1-1/4″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-0.37A | 1/4 – 20 | 3/8″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-0.37S | 1/4 – 20 | 3/8″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-0.37Z | 1/4 – 20 | 3/8″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-0.50A | 1/4 – 20 | 1/2″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-0.50S | 1/4 – 20 | 1/2″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-0.50Z | 1/4 – 20 | 1/2″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-0.62A | 1/4 – 20 | 5/8″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-0.62S | 1/4 – 20 | 5/8″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-0.62Z | 1/4 – 20 | 5/8″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-0.75A | 1/4 – 20 | 3/4″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-0.75S | 1/4 – 20 | 3/4″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-0.75Z | 1/4 – 20 | 3/4″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-0.87A | 1/4 – 20 | 7/8″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-0.87S | 1/4 – 20 | 7/8″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-0.87Z | 1/4 – 20 | 7/8″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-1.00A | 1/4 – 20 | 1″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-1.00S | 1/4 – 20 | 1″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-1.00Z | 1/4 – 20 | 1″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-1.25A | 1/4 – 20 | 1-1/4″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-1.25S | 1/4 – 20 | 1-1/4″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-1.25Z | 1/4 – 20 | 1-1/4″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-1.50A* | 1/4 – 20 | 1-1/2″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-1.50S* | 1/4 – 20 | 1-1/2″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-1.75A* | 1/4 – 20 | 1-3/4″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-1.75S* | 1/4 – 20 | 1-3/4″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-2.00A* | 1/4 – 20 | 2″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-2.00S* | 1/4 – 20 | 2″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-2.50A* | 1/4 – 20 | 2-1/2″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-2.50S* | 1/4 – 20 | 2-1/2″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-3.00A* | 1/4 – 20 | 3″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2520-3.00S* | 1/4 – 20 | 3″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2528-0.37A | 1/4 – 28 | 3/8″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2528-0.37S | 1/4 – 28 | 3/8″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2528-0.37Z | 1/4 – 28 | 3/8″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2528-0.50A | 1/4 – 28 | 1/2″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2528-0.50S | 1/4 – 28 | 1/2″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2528-0.50Z | 1/4 – 28 | 1/2″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2528-0.62A | 1/4 – 28 | 5/8″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2528-0.62S | 1/4 – 28 | 5/8″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2528-0.62Z | 1/4 – 28 | 5/8″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2528-0.75A | 1/4 – 28 | 3/4″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2528-0.75S | 1/4 – 28 | 3/4″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2528-0.75Z | 1/4 – 28 | 3/4″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2528-0.87A | 1/4 – 28 | 7/8″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2528-0.87S | 1/4 – 28 | 7/8″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2528-0.87Z | 1/4 – 28 | 7/8″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2528-1.00A | 1/4 – 28 | 1″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2528-1.00S | 1/4 – 28 | 1″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2528-1.00Z | 1/4 – 28 | 1″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2528-1.25A | 1/4 – 28 | 1-1/4″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2528-1.25S | 1/4 – 28 | 1-1/4″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907N-2528-1.25Z | 1/4 – 28 | 1-1/4″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-0.37A | 1/4 – 20 | 3/8″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-0.37S | 1/4 – 20 | 3/8″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-0.37Z | 1/4 – 20 | 3/8″ | Rosette | Red | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-0.50A | 1/4 – 20 | 1/2″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-0.50S | 1/4 – 20 | 1/2″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-0.50Z | 1/4 – 20 | 1/2″ | Rosette | Red | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-0.62A | 1/4 – 20 | 5/8″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-0.62S | 1/4 – 20 | 5/8″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-0.62Z | 1/4 – 20 | 5/8″ | Rosette | Red | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-0.75A | 1/4 – 20 | 3/4″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-0.75S | 1/4 – 20 | 3/4″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-0.75Z | 1/4 – 20 | 3/4″ | Rosette | Red | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-0.87A | 1/4 – 20 | 7/8″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-0.87S | 1/4 – 20 | 7/8″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-0.87Z | 1/4 – 20 | 7/8″ | Rosette | Red | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-1.00A | 1/4 – 20 | 1″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-1.00S | 1/4 – 20 | 1″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-1.00Z | 1/4 – 20 | 1″ | Rosette | Red | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-1.25A | 1/4 – 20 | 1-1/4″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-1.25S | 1/4 – 20 | 1-1/4″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-1.25Z | 1/4 – 20 | 1-1/4″ | Rosette | Red | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-1.50A* | 1/4 – 20 | 1-1/2″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-1.50S* | 1/4 – 20 | 1-1/2″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-1.75A* | 1/4 – 20 | 1-3/4″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-1.75S* | 1/4 – 20 | 1-3/4″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-2.00A* | 1/4 – 20 | 2″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-2.00S* | 1/4 – 20 | 2″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-2.50A* | 1/4 – 20 | 2-1/2″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-2.50S* | 1/4 – 20 | 2-1/2″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-3.00A* | 1/4 – 20 | 3″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2520-3.00S* | 1/4 – 20 | 3″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2528-0.37A | 1/4 – 28 | 3/8″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2528-0.37S | 1/4 – 28 | 3/8″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2528-0.37Z | 1/4 – 28 | 3/8″ | Rosette | Red | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2528-0.50A | 1/4 – 28 | 1/2″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2528-0.50S | 1/4 – 28 | 1/2″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2528-0.50Z | 1/4 – 28 | 1/2″ | Rosette | Red | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2528-0.62A | 1/4 – 28 | 5/8″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2528-0.62S | 1/4 – 28 | 5/8″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2528-0.62Z | 1/4 – 28 | 5/8″ | Rosette | Red | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2528-0.75A | 1/4 – 28 | 3/4″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2528-0.75S | 1/4 – 28 | 3/4″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2528-0.75Z | 1/4 – 28 | 3/4″ | Rosette | Red | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2528-0.87A | 1/4 – 28 | 7/8″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2528-0.87S | 1/4 – 28 | 7/8″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2528-0.87Z | 1/4 – 28 | 7/8″ | Rosette | Red | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2528-1.00A | 1/4 – 28 | 1″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2528-1.00S | 1/4 – 28 | 1″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2528-1.00Z | 1/4 – 28 | 1″ | Rosette | Red | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2528-1.25A | 1/4 – 28 | 1-1/4″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2528-1.25S | 1/4 – 28 | 1-1/4″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907R-2528-1.25Z | 1/4 – 28 | 1-1/4″ | Rosette | Red | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-0.37A | 1/4 – 20 | 3/8″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-0.37S | 1/4 – 20 | 3/8″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-0.37Z | 1/4 – 20 | 3/8″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-0.50A | 1/4 – 20 | 1/2″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-0.50S | 1/4 – 20 | 1/2″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-0.50Z | 1/4 – 20 | 1/2″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-0.62A | 1/4 – 20 | 5/8″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-0.62S | 1/4 – 20 | 5/8″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-0.62Z | 1/4 – 20 | 5/8″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-0.75A | 1/4 – 20 | 3/4″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-0.75S | 1/4 – 20 | 3/4″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-0.75Z | 1/4 – 20 | 3/4″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-0.87A | 1/4 – 20 | 7/8″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-0.87S | 1/4 – 20 | 7/8″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-0.87Z | 1/4 – 20 | 7/8″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-1.00A | 1/4 – 20 | 1″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-1.00S | 1/4 – 20 | 1″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-1.00Z | 1/4 – 20 | 1″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-1.25A | 1/4 – 20 | 1-1/4″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-1.25S | 1/4 – 20 | 1-1/4″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-1.25Z | 1/4 – 20 | 1-1/4″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-1.50A* | 1/4 – 20 | 1-1/2″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-1.50S* | 1/4 – 20 | 1-1/2″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-1.75A* | 1/4 – 20 | 1-3/4″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-1.75S* | 1/4 – 20 | 1-3/4″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-2.00A* | 1/4 – 20 | 2″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-2.00S* | 1/4 – 20 | 2″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-2.50A* | 1/4 – 20 | 2-1/2″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-2.50S* | 1/4 – 20 | 2-1/2″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-3.00A* | 1/4 – 20 | 3″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2520-3.00S* | 1/4 – 20 | 3″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2528-0.37A | 1/4 – 28 | 3/8″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2528-0.37S | 1/4 – 28 | 3/8″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2528-0.37Z | 1/4 – 28 | 3/8″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2528-0.50A | 1/4 – 28 | 1/2″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2528-0.50S | 1/4 – 28 | 1/2″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2528-0.50Z | 1/4 – 28 | 1/2″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2528-0.62A | 1/4 – 28 | 5/8″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2528-0.62S | 1/4 – 28 | 5/8″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2528-0.62Z | 1/4 – 28 | 5/8″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2528-0.75A | 1/4 – 28 | 3/4″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2528-0.75S | 1/4 – 28 | 3/4″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2528-0.75Z | 1/4 – 28 | 3/4″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2528-0.87A | 1/4 – 28 | 7/8″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2528-0.87S | 1/4 – 28 | 7/8″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2528-0.87Z | 1/4 – 28 | 7/8″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2528-1.00A | 1/4 – 28 | 1″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2528-1.00S | 1/4 – 28 | 1″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2528-1.00Z | 1/4 – 28 | 1″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2528-1.25A | 1/4 – 28 | 1-1/4″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2528-1.25S | 1/4 – 28 | 1-1/4″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 17/32″ |
| 907Y-2528-1.25Z | 1/4 – 28 | 1-1/4″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 15/32″ | 17/32″ |
| 908B-3118-0.50A | 5 / 16 – 18 | 1/2″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3118-0.50S | 5 / 16 – 18 | 1/2″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3118-0.50Z | 5 / 16 – 18 | 1/2″ | Rosette | Black | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3118-0.62A | 5 / 16 – 18 | 5/8″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3118-0.62S | 5 / 16 – 18 | 5/8″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3118-0.62Z | 5 / 16 – 18 | 5/8″ | Rosette | Black | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3118-0.75A | 5 / 16 – 18 | 3/4″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3118-0.75S | 5 / 16 – 18 | 3/4″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3118-0.75Z | 5 / 16 – 18 | 3/4″ | Rosette | Black | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3118-0.87A | 5 / 16 – 18 | 7/8″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3118-0.87S | 5 / 16 – 18 | 7/8″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3118-0.87Z | 5 / 16 – 18 | 7/8″ | Rosette | Black | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3118-1.00A | 5 / 16 – 18 | 1″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3118-1.00S | 5 / 16 – 18 | 1″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3118-1.00Z | 5 / 16 – 18 | 1″ | Rosette | Black | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3118-1.25A | 5 / 16 – 18 | 1-1/4″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3118-1.25S | 5 / 16 – 18 | 1-1/4″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3118-1.25Z | 5 / 16 – 18 | 1-1/4″ | Rosette | Black | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3118-1.50A | 5 / 16 – 18 | 1-1/2″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3118-1.50S | 5 / 16 – 18 | 1-1/2″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3118-1.50Z | 5 / 16 – 18 | 1-1/2″ | Rosette | Black | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3124-0.50A | 5 / 16 – 24 | 1/2″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3124-0.50S | 5 / 16 – 24 | 1/2″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3124-0.50Z | 5 / 16 – 24 | 1/2″ | Rosette | Black | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3124-0.62A | 5 / 16 – 24 | 5/8″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3124-0.62S | 5 / 16 – 24 | 5/8″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3124-0.62Z | 5 / 16 – 24 | 5/8″ | Rosette | Black | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3124-0.75A | 5 / 16 – 24 | 3/4″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3124-0.75S | 5 / 16 – 24 | 3/4″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3124-0.75Z | 5 / 16 – 24 | 3/4″ | Rosette | Black | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3124-0.87A | 5 / 16 – 24 | 7/8″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3124-0.87S | 5 / 16 – 24 | 7/8″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3124-0.87Z | 5 / 16 – 24 | 7/8″ | Rosette | Black | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3124-1.00A | 5 / 16 – 24 | 1″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3124-1.00S | 5 / 16 – 24 | 1″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3124-1.00Z | 5 / 16 – 24 | 1″ | Rosette | Black | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3124-1.25A | 5 / 16 – 24 | 1-1/4″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3124-1.25S | 5 / 16 – 24 | 1-1/4″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3124-1.25Z | 5 / 16 – 24 | 1-1/4″ | Rosette | Black | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3124-1.50A | 5 / 16 – 24 | 1-1/2″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3124-1.50S | 5 / 16 – 24 | 1-1/2″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908B-3124-1.50Z | 5 / 16 – 24 | 1-1/2″ | Rosette | Black | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3118-0.50A | 5 / 16 – 18 | 1/2″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3118-0.50S | 5 / 16 – 18 | 1/2″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3118-0.50Z | 5 / 16 – 18 | 1/2″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3118-0.62A | 5 / 16 – 18 | 5/8″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3118-0.62S | 5 / 16 – 18 | 5/8″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3118-0.62Z | 5 / 16 – 18 | 5/8″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3118-0.75A | 5 / 16 – 18 | 3/4″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3118-0.75S | 5 / 16 – 18 | 3/4″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3118-0.75Z | 5 / 16 – 18 | 3/4″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3118-0.87A | 5 / 16 – 18 | 7/8″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3118-0.87S | 5 / 16 – 18 | 7/8″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3118-0.87Z | 5 / 16 – 18 | 7/8″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3118-1.00A | 5 / 16 – 18 | 1″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3118-1.00S | 5 / 16 – 18 | 1″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3118-1.00Z | 5 / 16 – 18 | 1″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3118-1.25A | 5 / 16 – 18 | 1-1/4″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3118-1.25S | 5 / 16 – 18 | 1-1/4″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3118-1.25Z | 5 / 16 – 18 | 1-1/4″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3118-1.50A | 5 / 16 – 18 | 1-1/2″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3118-1.50S | 5 / 16 – 18 | 1-1/2″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3118-1.50Z | 5 / 16 – 18 | 1-1/2″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3124-0.50A | 5 / 16 – 24 | 1/2″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3124-0.50S | 5 / 16 – 24 | 1/2″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3124-0.50Z | 5 / 16 – 24 | 1/2″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3124-0.62A | 5 / 16 – 24 | 5/8″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3124-0.62S | 5 / 16 – 24 | 5/8″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3124-0.62Z | 5 / 16 – 24 | 5/8″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3124-0.75A | 5 / 16 – 24 | 3/4″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3124-0.75S | 5 / 16 – 24 | 3/4″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3124-0.75Z | 5 / 16 – 24 | 3/4″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3124-0.87A | 5 / 16 – 24 | 7/8″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3124-0.87S | 5 / 16 – 24 | 7/8″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3124-0.87Z | 5 / 16 – 24 | 7/8″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3124-1.00A | 5 / 16 – 24 | 1″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3124-1.00S | 5 / 16 – 24 | 1″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3124-1.00Z | 5 / 16 – 24 | 1″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3124-1.25A | 5 / 16 – 24 | 1-1/4″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3124-1.25S | 5 / 16 – 24 | 1-1/4″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3124-1.25Z | 5 / 16 – 24 | 1-1/4″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3124-1.50A | 5 / 16 – 24 | 1-1/2″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3124-1.50S | 5 / 16 – 24 | 1-1/2″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908G-3124-1.50Z | 5 / 16 – 24 | 1-1/2″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3118-0.50A | 5 / 16 – 18 | 1/2″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3118-0.50S | 5 / 16 – 18 | 1/2″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3118-0.50Z | 5 / 16 – 18 | 1/2″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3118-0.62A | 5 / 16 – 18 | 5/8″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3118-0.62S | 5 / 16 – 18 | 5/8″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3118-0.62Z | 5 / 16 – 18 | 5/8″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3118-0.75A | 5 / 16 – 18 | 3/4″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3118-0.75S | 5 / 16 – 18 | 3/4″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3118-0.75Z | 5 / 16 – 18 | 3/4″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3118-0.87A | 5 / 16 – 18 | 7/8″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3118-0.87S | 5 / 16 – 18 | 7/8″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3118-0.87Z | 5 / 16 – 18 | 7/8″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3118-1.00A | 5 / 16 – 18 | 1″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3118-1.00S | 5 / 16 – 18 | 1″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3118-1.00Z | 5 / 16 – 18 | 1″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3118-1.25A | 5 / 16 – 18 | 1-1/4″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3118-1.25S | 5 / 16 – 18 | 1-1/4″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3118-1.25Z | 5 / 16 – 18 | 1-1/4″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3118-1.50A | 5 / 16 – 18 | 1-1/2″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3118-1.50S | 5 / 16 – 18 | 1-1/2″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3118-1.50Z | 5 / 16 – 18 | 1-1/2″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3124-0.50A | 5 / 16 – 24 | 1/2″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3124-0.50S | 5 / 16 – 24 | 1/2″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3124-0.50Z | 5 / 16 – 24 | 1/2″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3124-0.62A | 5 / 16 – 24 | 5/8″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3124-0.62S | 5 / 16 – 24 | 5/8″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3124-0.62Z | 5 / 16 – 24 | 5/8″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3124-0.75A | 5 / 16 – 24 | 3/4″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3124-0.75S | 5 / 16 – 24 | 3/4″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3124-0.75Z | 5 / 16 – 24 | 3/4″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3124-0.87A | 5 / 16 – 24 | 7/8″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3124-0.87S | 5 / 16 – 24 | 7/8″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3124-0.87Z | 5 / 16 – 24 | 7/8″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3124-1.00A | 5 / 16 – 24 | 1″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3124-1.00S | 5 / 16 – 24 | 1″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3124-1.00Z | 5 / 16 – 24 | 1″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3124-1.25A | 5 / 16 – 24 | 1-1/4″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3124-1.25S | 5 / 16 – 24 | 1-1/4″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3124-1.25Z | 5 / 16 – 24 | 1-1/4″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3124-1.50A | 5 / 16 – 24 | 1-1/2″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3124-1.50S | 5 / 16 – 24 | 1-1/2″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908N-3124-1.50Z | 5 / 16 – 24 | 1-1/2″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3118-0.50A | 5 / 16 – 18 | 1/2″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3118-0.50S | 5 / 16 – 18 | 1/2″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3118-0.50Z | 5 / 16 – 18 | 1/2″ | Rosette | Red | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3118-0.62A | 5 / 16 – 18 | 5/8″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3118-0.62S | 5 / 16 – 18 | 5/8″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3118-0.62Z | 5 / 16 – 18 | 5/8″ | Rosette | Red | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3118-0.75A | 5 / 16 – 18 | 3/4″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3118-0.75S | 5 / 16 – 18 | 3/4″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3118-0.75Z | 5 / 16 – 18 | 3/4″ | Rosette | Red | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3118-0.87A | 5 / 16 – 18 | 7/8″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3118-0.87S | 5 / 16 – 18 | 7/8″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3118-0.87Z | 5 / 16 – 18 | 7/8″ | Rosette | Red | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3118-1.00A | 5 / 16 – 18 | 1″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3118-1.00S | 5 / 16 – 18 | 1″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3118-1.00Z | 5 / 16 – 18 | 1″ | Rosette | Red | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3118-1.25A | 5 / 16 – 18 | 1-1/4″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3118-1.25S | 5 / 16 – 18 | 1-1/4″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3118-1.25Z | 5 / 16 – 18 | 1-1/4″ | Rosette | Red | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3118-1.50A | 5 / 16 – 18 | 1-1/2″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3118-1.50S | 5 / 16 – 18 | 1-1/2″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3118-1.50Z | 5 / 16 – 18 | 1-1/2″ | Rosette | Red | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3124-0.50A | 5 / 16 – 24 | 1/2″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3124-0.50S | 5 / 16 – 24 | 1/2″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3124-0.50Z | 5 / 16 – 24 | 1/2″ | Rosette | Red | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3124-0.62A | 5 / 16 – 24 | 5/8″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3124-0.62S | 5 / 16 – 24 | 5/8″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3124-0.62Z | 5 / 16 – 24 | 5/8″ | Rosette | Red | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3124-0.75A | 5 / 16 – 24 | 3/4″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3124-0.75S | 5 / 16 – 24 | 3/4″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3124-0.75Z | 5 / 16 – 24 | 3/4″ | Rosette | Red | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3124-0.87A | 5 / 16 – 24 | 7/8″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3124-0.87S | 5 / 16 – 24 | 7/8″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3124-0.87Z | 5 / 16 – 24 | 7/8″ | Rosette | Red | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3124-1.00A | 5 / 16 – 24 | 1″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3124-1.00S | 5 / 16 – 24 | 1″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3124-1.00Z | 5 / 16 – 24 | 1″ | Rosette | Red | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3124-1.25A | 5 / 16 – 24 | 1-1/4″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3124-1.25S | 5 / 16 – 24 | 1-1/4″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3124-1.25Z | 5 / 16 – 24 | 1-1/4″ | Rosette | Red | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3124-1.50A | 5 / 16 – 24 | 1-1/2″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3124-1.50S | 5 / 16 – 24 | 1-1/2″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908R-3124-1.50Z | 5 / 16 – 24 | 1-1/2″ | Rosette | Red | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3118-0.50A | 5 / 16 – 18 | 1/2″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3118-0.50S | 5 / 16 – 18 | 1/2″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3118-0.50Z | 5 / 16 – 18 | 1/2″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3118-0.62A | 5 / 16 – 18 | 5/8″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3118-0.62S | 5 / 16 – 18 | 5/8″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3118-0.62Z | 5 / 16 – 18 | 5/8″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3118-0.75A | 5 / 16 – 18 | 3/4″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3118-0.75S | 5 / 16 – 18 | 3/4″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3118-0.75Z | 5 / 16 – 18 | 3/4″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3118-0.87A | 5 / 16 – 18 | 7/8″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3118-0.87S | 5 / 16 – 18 | 7/8″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3118-0.87Z | 5 / 16 – 18 | 7/8″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3118-1.00A | 5 / 16 – 18 | 1″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3118-1.00S | 5 / 16 – 18 | 1″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3118-1.00Z | 5 / 16 – 18 | 1″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3118-1.25A | 5 / 16 – 18 | 1-1/4″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3118-1.25S | 5 / 16 – 18 | 1-1/4″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3118-1.25Z | 5 / 16 – 18 | 1-1/4″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3118-1.50A | 5 / 16 – 18 | 1-1/2″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3118-1.50S | 5 / 16 – 18 | 1-1/2″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3118-1.50Z | 5 / 16 – 18 | 1-1/2″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3124-0.50A | 5 / 16 – 24 | 1/2″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3124-0.50S | 5 / 16 – 24 | 1/2″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3124-0.50Z | 5 / 16 – 24 | 1/2″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3124-0.62A | 5 / 16 – 24 | 5/8″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3124-0.62S | 5 / 16 – 24 | 5/8″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3124-0.62Z | 5 / 16 – 24 | 5/8″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3124-0.75A | 5 / 16 – 24 | 3/4″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3124-0.75S | 5 / 16 – 24 | 3/4″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3124-0.75Z | 5 / 16 – 24 | 3/4″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3124-0.87A | 5 / 16 – 24 | 7/8″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3124-0.87S | 5 / 16 – 24 | 7/8″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3124-0.87Z | 5 / 16 – 24 | 7/8″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3124-1.00A | 5 / 16 – 24 | 1″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3124-1.00S | 5 / 16 – 24 | 1″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3124-1.00Z | 5 / 16 – 24 | 1″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3124-1.25A | 5 / 16 – 24 | 1-1/4″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3124-1.25S | 5 / 16 – 24 | 1-1/4″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3124-1.25Z | 5 / 16 – 24 | 1-1/4″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3124-1.50A | 5 / 16 – 24 | 1-1/2″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3124-1.50S | 5 / 16 – 24 | 1-1/2″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 13/32″ | 37/64″ |
| 908Y-3124-1.50Z | 5 / 16 – 24 | 1-1/2″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 13/32″ | 37/64″ |
| 909B-3716-0.75A | 3 / 8 – 16 | 3/4″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909B-3716-0.75S | 3 / 8 – 16 | 3/4″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909B-3716-0.75Z | 3 / 8 – 16 | 3/4″ | Rosette | Black | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 909B-3716-0.87A | 3 / 8 – 16 | 7/8″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909B-3716-0.87S | 3 / 8 – 16 | 7/8″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909B-3716-0.87Z | 3 / 8 – 16 | 7/8″ | Rosette | Black | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 909B-3716-1.00A | 3 / 8 – 16 | 1″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909B-3716-1.00S | 3 / 8 – 16 | 1″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909B-3716-1.00Z | 3 / 8 – 16 | 1″ | Rosette | Black | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 909B-3716-1.25A | 3 / 8 – 16 | 1-1/4″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909B-3716-1.25S | 3 / 8 – 16 | 1-1/4″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909B-3716-1.25Z | 3 / 8 – 16 | 1-1/4″ | Rosette | Black | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 909B-3716-1.50A | 3 / 8 – 16 | 1-1/2″ | Rosette | Black | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909B-3716-1.50S | 3 / 8 – 16 | 1-1/2″ | Rosette | Black | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909B-3716-1.50Z | 3 / 8 – 16 | 1-1/2″ | Rosette | Black | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 909G-3716-0.75A | 3 / 8 – 16 | 3/4″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909G-3716-0.75S | 3 / 8 – 16 | 3/4″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909G-3716-0.75Z | 3 / 8 – 16 | 3/4″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 909G-3716-0.87A | 3 / 8 – 16 | 7/8″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909G-3716-0.87S | 3 / 8 – 16 | 7/8″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909G-3716-0.87Z | 3 / 8 – 16 | 7/8″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 909G-3716-1.00A | 3 / 8 – 16 | 1″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909G-3716-1.00S | 3 / 8 – 16 | 1″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909G-3716-1.00Z | 3 / 8 – 16 | 1″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 909G-3716-1.25A | 3 / 8 – 16 | 1-1/4″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909G-3716-1.25S | 3 / 8 – 16 | 1-1/4″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909G-3716-1.25Z | 3 / 8 – 16 | 1-1/4″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 909G-3716-1.50A | 3 / 8 – 16 | 1-1/2″ | Rosette | Gray | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909G-3716-1.50S | 3 / 8 – 16 | 1-1/2″ | Rosette | Gray | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909G-3716-1.50Z | 3 / 8 – 16 | 1-1/2″ | Rosette | Gray | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 909N-3716-0.75A | 3 / 8 – 16 | 3/4″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909N-3716-0.75S | 3 / 8 – 16 | 3/4″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909N-3716-0.75Z | 3 / 8 – 16 | 3/4″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 909N-3716-0.87A | 3 / 8 – 16 | 7/8″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909N-3716-0.87S | 3 / 8 – 16 | 7/8″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909N-3716-0.87Z | 3 / 8 – 16 | 7/8″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 909N-3716-1.00A | 3 / 8 – 16 | 1″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909N-3716-1.00S | 3 / 8 – 16 | 1″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909N-3716-1.00Z | 3 / 8 – 16 | 1″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 909N-3716-1.25A | 3 / 8 – 16 | 1-1/4″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909N-3716-1.25S | 3 / 8 – 16 | 1-1/4″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909N-3716-1.25Z | 3 / 8 – 16 | 1-1/4″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 909N-3716-1.50A | 3 / 8 – 16 | 1-1/2″ | Rosette | Natural | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909N-3716-1.50S | 3 / 8 – 16 | 1-1/2″ | Rosette | Natural | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909N-3716-1.50Z | 3 / 8 – 16 | 1-1/2″ | Rosette | Natural | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 909R-3716-0.75A | 3 / 8 – 16 | 3/4″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909R-3716-0.75S | 3 / 8 – 16 | 3/4″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909R-3716-0.75Z | 3 / 8 – 16 | 3/4″ | Rosette | Red | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 909R-3716-0.87A | 3 / 8 – 16 | 7/8″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909R-3716-0.87S | 3 / 8 – 16 | 7/8″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909R-3716-0.87Z | 3 / 8 – 16 | 7/8″ | Rosette | Red | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 909R-3716-1.00A | 3 / 8 – 16 | 1″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909R-3716-1.00S | 3 / 8 – 16 | 1″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909R-3716-1.00Z | 3 / 8 – 16 | 1″ | Rosette | Red | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 909R-3716-1.25A | 3 / 8 – 16 | 1-1/4″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909R-3716-1.25S | 3 / 8 – 16 | 1-1/4″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909R-3716-1.25Z | 3 / 8 – 16 | 1-1/4″ | Rosette | Red | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 909R-3716-1.50A | 3 / 8 – 16 | 1-1/2″ | Rosette | Red | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909R-3716-1.50S | 3 / 8 – 16 | 1-1/2″ | Rosette | Red | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909R-3716-1.50Z | 3 / 8 – 16 | 1-1/2″ | Rosette | Red | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 909Y-3716-0.75A | 3 / 8 – 16 | 3/4″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909Y-3716-0.75S | 3 / 8 – 16 | 3/4″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909Y-3716-0.75Z | 3 / 8 – 16 | 3/4″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 909Y-3716-0.87A | 3 / 8 – 16 | 7/8″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909Y-3716-0.87S | 3 / 8 – 16 | 7/8″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909Y-3716-0.87Z | 3 / 8 – 16 | 7/8″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 909Y-3716-1.00A | 3 / 8 – 16 | 1″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909Y-3716-1.00S | 3 / 8 – 16 | 1″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909Y-3716-1.00Z | 3 / 8 – 16 | 1″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 909Y-3716-1.25A | 3 / 8 – 16 | 1-1/4″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909Y-3716-1.25S | 3 / 8 – 16 | 1-1/4″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909Y-3716-1.25Z | 3 / 8 – 16 | 1-1/4″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 909Y-3716-1.50A | 3 / 8 – 16 | 1-1/2″ | Rosette | Yellow | Black Alloy Steel | 1-1/2″ | 15/32″ | 45/64″ |
| 909Y-3716-1.50S | 3 / 8 – 16 | 1-1/2″ | Rosette | Yellow | Stainless Steel 18-8 | 1-1/2″ | 15/32″ | 45/64″ |
| 909Y-3716-1.50Z | 3 / 8 – 16 | 1-1/2″ | Rosette | Yellow | Zinc Plated | 1-1/2″ | 15/32″ | 45/64″ |
| 934B-0610-010A | M6 1.0 | 10mm | Rosette | Black | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934B-0610-010S | M6 1.0 | 10mm | Rosette | Black | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 934B-0610-010Z | M6 1.0 | 10mm | Rosette | Black | Zinc Plated | 38mm | 12.2mm | 14.1mm |
| 934B-0610-012A | M6 1.0 | 12mm | Rosette | Black | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934B-0610-012S | M6 1.0 | 12mm | Rosette | Black | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 934B-0610-012Z | M6 1.0 | 12mm | Rosette | Black | Zinc Plated | 38mm | 12.2mm | 14.1mm |
| 934B-0610-016A | M6 1.0 | 16mm | Rosette | Black | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934B-0610-016S | M6 1.0 | 16mm | Rosette | Black | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 934B-0610-016Z | M6 1.0 | 16mm | Rosette | Black | Zinc Plated | 38mm | 12.2mm | 14.1mm |
| 934B-0610-020A | M6 1.0 | 20mm | Rosette | Black | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934B-0610-020S | M6 1.0 | 20mm | Rosette | Black | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 934B-0610-020Z | M6 1.0 | 20mm | Rosette | Black | Zinc Plated | 38mm | 12.2mm | 14.1mm |
| 934B-0610-025A | M6 1.0 | 25mm | Rosette | Black | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934B-0610-025S | M6 1.0 | 25mm | Rosette | Black | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 934G-0610-010A | M6 1.0 | 10mm | Rosette | Gray | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934G-0610-010S | M6 1.0 | 10mm | Rosette | Gray | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 934G-0610-010Z | M6 1.0 | 10mm | Rosette | Gray | Zinc Plated | 38mm | 12.2mm | 14.1mm |
| 934G-0610-012A | M6 1.0 | 12mm | Rosette | Gray | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934G-0610-012S | M6 1.0 | 12mm | Rosette | Gray | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 934G-0610-012Z | M6 1.0 | 12mm | Rosette | Gray | Zinc Plated | 38mm | 12.2mm | 14.1mm |
| 934G-0610-016A | M6 1.0 | 16mm | Rosette | Gray | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934G-0610-016S | M6 1.0 | 16mm | Rosette | Gray | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 934G-0610-016Z | M6 1.0 | 16mm | Rosette | Gray | Zinc Plated | 38mm | 12.2mm | 14.1mm |
| 934G-0610-020A | M6 1.0 | 20mm | Rosette | Gray | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934G-0610-020S | M6 1.0 | 20mm | Rosette | Gray | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 934G-0610-020Z | M6 1.0 | 20mm | Rosette | Gray | Zinc Plated | 38mm | 12.2mm | 14.1mm |
| 934G-0610-025A | M6 1.0 | 25mm | Rosette | Gray | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934G-0610-025S | M6 1.0 | 25mm | Rosette | Gray | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 934N-0610-010A | M6 1.0 | 10mm | Rosette | Natural | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934N-0610-010S | M6 1.0 | 10mm | Rosette | Natural | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 934N-0610-010Z | M6 1.0 | 10mm | Rosette | Natural | Zinc Plated | 38mm | 12.2mm | 14.1mm |
| 934N-0610-012A | M6 1.0 | 12mm | Rosette | Natural | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934N-0610-012S | M6 1.0 | 12mm | Rosette | Natural | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 934N-0610-012Z | M6 1.0 | 12mm | Rosette | Natural | Zinc Plated | 38mm | 12.2mm | 14.1mm |
| 934N-0610-016A | M6 1.0 | 16mm | Rosette | Natural | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934N-0610-016S | M6 1.0 | 16mm | Rosette | Natural | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 934N-0610-016Z | M6 1.0 | 16mm | Rosette | Natural | Zinc Plated | 38mm | 12.2mm | 14.1mm |
| 934N-0610-020A | M6 1.0 | 20mm | Rosette | Natural | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934N-0610-020S | M6 1.0 | 20mm | Rosette | Natural | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 934N-0610-020Z | M6 1.0 | 20mm | Rosette | Natural | Zinc Plated | 38mm | 12.2mm | 14.1mm |
| 934N-0610-025A | M6 1.0 | 25mm | Rosette | Natural | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934N-0610-025S | M6 1.0 | 25mm | Rosette | Natural | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 934R-0610-010A | M6 1.0 | 10mm | Rosette | Red | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934R-0610-010S | M6 1.0 | 10mm | Rosette | Red | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 934R-0610-010Z | M6 1.0 | 10mm | Rosette | Red | Zinc Plated | 38mm | 12.2mm | 14.1mm |
| 934R-0610-012A | M6 1.0 | 12mm | Rosette | Red | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934R-0610-012S | M6 1.0 | 12mm | Rosette | Red | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 934R-0610-012Z | M6 1.0 | 12mm | Rosette | Red | Zinc Plated | 38mm | 12.2mm | 14.1mm |
| 934R-0610-016A | M6 1.0 | 16mm | Rosette | Red | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934R-0610-016S | M6 1.0 | 16mm | Rosette | Red | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 934R-0610-016Z | M6 1.0 | 16mm | Rosette | Red | Zinc Plated | 38mm | 12.2mm | 14.1mm |
| 934R-0610-020A | M6 1.0 | 20mm | Rosette | Red | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934R-0610-020S | M6 1.0 | 20mm | Rosette | Red | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 934R-0610-020Z | M6 1.0 | 20mm | Rosette | Red | Zinc Plated | 38mm | 12.2mm | 14.1mm |
| 934R-0610-025A | M6 1.0 | 25mm | Rosette | Red | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934R-0610-025S | M6 1.0 | 25mm | Rosette | Red | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 934Y-0610-010A | M6 1.0 | 10mm | Rosette | Yellow | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934Y-0610-010S | M6 1.0 | 10mm | Rosette | Yellow | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 934Y-0610-010Z | M6 1.0 | 10mm | Rosette | Yellow | Zinc Plated | 38mm | 12.2mm | 14.1mm |
| 934Y-0610-012A | M6 1.0 | 12mm | Rosette | Yellow | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934Y-0610-012S | M6 1.0 | 12mm | Rosette | Yellow | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 934Y-0610-012Z | M6 1.0 | 12mm | Rosette | Yellow | Zinc Plated | 38mm | 12.2mm | 14.1mm |
| 934Y-0610-016A | M6 1.0 | 16mm | Rosette | Yellow | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934Y-0610-016S | M6 1.0 | 16mm | Rosette | Yellow | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 934Y-0610-016Z | M6 1.0 | 16mm | Rosette | Yellow | Zinc Plated | 38mm | 12.2mm | 14.1mm |
| 934Y-0610-020A | M6 1.0 | 20mm | Rosette | Yellow | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934Y-0610-020S | M6 1.0 | 20mm | Rosette | Yellow | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 934Y-0610-020Z | M6 1.0 | 20mm | Rosette | Yellow | Zinc Plated | 38mm | 12.2mm | 14.1mm |
| 934Y-0610-025A | M6 1.0 | 25mm | Rosette | Yellow | Black Alloy Steel | 38mm | 12.2mm | 14.1mm |
| 934Y-0610-025S | M6 1.0 | 25mm | Rosette | Yellow | Stainless Steel 18-8 | 38mm | 12.2mm | 14.1mm |
| 935B-0812-012A | M8 1.25 | 12mm | Rosette | Black | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935B-0812-012S | M8 1.25 | 12mm | Rosette | Black | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 935B-0812-012Z | M8 1.25 | 12mm | Rosette | Black | Zinc Plated | 38mm | 10mm | 16mm |
| 935B-0812-016A | M8 1.25 | 16mm | Rosette | Black | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935B-0812-016S | M8 1.25 | 16mm | Rosette | Black | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 935B-0812-016Z | M8 1.25 | 16mm | Rosette | Black | Zinc Plated | 38mm | 10mm | 16mm |
| 935B-0812-020A | M8 1.25 | 20mm | Rosette | Black | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935B-0812-020S | M8 1.25 | 20mm | Rosette | Black | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 935B-0812-020Z | M8 1.25 | 20mm | Rosette | Black | Zinc Plated | 38mm | 10mm | 16mm |
| 935B-0812-025A | M8 1.25 | 25mm | Rosette | Black | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935B-0812-025S | M8 1.25 | 25mm | Rosette | Black | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 935B-0812-025Z | M8 1.25 | 25mm | Rosette | Black | Zinc Plated | 38mm | 10mm | 16mm |
| 935B-0812-030A | M8 1.25 | 30mm | Rosette | Black | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935B-0812-030S | M8 1.25 | 30mm | Rosette | Black | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 935G-0812-012A | M8 1.25 | 12mm | Rosette | Gray | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935G-0812-012S | M8 1.25 | 12mm | Rosette | Gray | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 935G-0812-012Z | M8 1.25 | 12mm | Rosette | Gray | Zinc Plated | 38mm | 10mm | 16mm |
| 935G-0812-016A | M8 1.25 | 16mm | Rosette | Gray | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935G-0812-016S | M8 1.25 | 16mm | Rosette | Gray | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 935G-0812-016Z | M8 1.25 | 16mm | Rosette | Gray | Zinc Plated | 38mm | 10mm | 16mm |
| 935G-0812-020A | M8 1.25 | 20mm | Rosette | Gray | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935G-0812-020S | M8 1.25 | 20mm | Rosette | Gray | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 935G-0812-020Z | M8 1.25 | 20mm | Rosette | Gray | Zinc Plated | 38mm | 10mm | 16mm |
| 935G-0812-025A | M8 1.25 | 25mm | Rosette | Gray | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935G-0812-025S | M8 1.25 | 25mm | Rosette | Gray | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 935G-0812-025Z | M8 1.25 | 25mm | Rosette | Gray | Zinc Plated | 38mm | 10mm | 16mm |
| 935G-0812-030A | M8 1.25 | 30mm | Rosette | Gray | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935G-0812-030S | M8 1.25 | 30mm | Rosette | Gray | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 935N-0812-012A | M8 1.25 | 12mm | Rosette | Natural | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935N-0812-012S | M8 1.25 | 12mm | Rosette | Natural | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 935N-0812-012Z | M8 1.25 | 12mm | Rosette | Natural | Zinc Plated | 38mm | 10mm | 16mm |
| 935N-0812-016A | M8 1.25 | 16mm | Rosette | Natural | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935N-0812-016S | M8 1.25 | 16mm | Rosette | Natural | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 935N-0812-016Z | M8 1.25 | 16mm | Rosette | Natural | Zinc Plated | 38mm | 10mm | 16mm |
| 935N-0812-020A | M8 1.25 | 20mm | Rosette | Natural | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935N-0812-020S | M8 1.25 | 20mm | Rosette | Natural | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 935N-0812-020Z | M8 1.25 | 20mm | Rosette | Natural | Zinc Plated | 38mm | 10mm | 16mm |
| 935N-0812-025A | M8 1.25 | 25mm | Rosette | Natural | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935N-0812-025S | M8 1.25 | 25mm | Rosette | Natural | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 935N-0812-025Z | M8 1.25 | 25mm | Rosette | Natural | Zinc Plated | 38mm | 10mm | 16mm |
| 935N-0812-030A | M8 1.25 | 30mm | Rosette | Natural | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935N-0812-030S | M8 1.25 | 30mm | Rosette | Natural | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 935R-0812-012A | M8 1.25 | 12mm | Rosette | Red | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935R-0812-012S | M8 1.25 | 12mm | Rosette | Red | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 935R-0812-012Z | M8 1.25 | 12mm | Rosette | Red | Zinc Plated | 38mm | 10mm | 16mm |
| 935R-0812-016A | M8 1.25 | 16mm | Rosette | Red | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935R-0812-016S | M8 1.25 | 16mm | Rosette | Red | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 935R-0812-016Z | M8 1.25 | 16mm | Rosette | Red | Zinc Plated | 38mm | 10mm | 16mm |
| 935R-0812-020A | M8 1.25 | 20mm | Rosette | Red | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935R-0812-020S | M8 1.25 | 20mm | Rosette | Red | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 935R-0812-020Z | M8 1.25 | 20mm | Rosette | Red | Zinc Plated | 38mm | 10mm | 16mm |
| 935R-0812-025A | M8 1.25 | 25mm | Rosette | Red | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935R-0812-025S | M8 1.25 | 25mm | Rosette | Red | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 935R-0812-025Z | M8 1.25 | 25mm | Rosette | Red | Zinc Plated | 38mm | 10mm | 16mm |
| 935R-0812-030A | M8 1.25 | 30mm | Rosette | Red | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935R-0812-030S | M8 1.25 | 30mm | Rosette | Red | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 935Y-0812-012A | M8 1.25 | 12mm | Rosette | Yellow | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935Y-0812-012S | M8 1.25 | 12mm | Rosette | Yellow | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 935Y-0812-012Z | M8 1.25 | 12mm | Rosette | Yellow | Zinc Plated | 38mm | 10mm | 16mm |
| 935Y-0812-016A | M8 1.25 | 16mm | Rosette | Yellow | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935Y-0812-016S | M8 1.25 | 16mm | Rosette | Yellow | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 935Y-0812-016Z | M8 1.25 | 16mm | Rosette | Yellow | Zinc Plated | 38mm | 10mm | 16mm |
| 935Y-0812-020A | M8 1.25 | 20mm | Rosette | Yellow | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935Y-0812-020S | M8 1.25 | 20mm | Rosette | Yellow | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 935Y-0812-020Z | M8 1.25 | 20mm | Rosette | Yellow | Zinc Plated | 38mm | 10mm | 16mm |
| 935Y-0812-025A | M8 1.25 | 25mm | Rosette | Yellow | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935Y-0812-025S | M8 1.25 | 25mm | Rosette | Yellow | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 935Y-0812-025Z | M8 1.25 | 25mm | Rosette | Yellow | Zinc Plated | 38mm | 10mm | 16mm |
| 935Y-0812-030A | M8 1.25 | 30mm | Rosette | Yellow | Black Alloy Steel | 38mm | 10mm | 16mm |
| 935Y-0812-030S | M8 1.25 | 30mm | Rosette | Yellow | Stainless Steel 18-8 | 38mm | 10mm | 16mm |
| 936B-1015-012A | M10 1.5 | 12mm | Rosette | Black | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936B-1015-012S | M10 1.5 | 12mm | Rosette | Black | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936B-1015-012Z | M10 1.5 | 12mm | Rosette | Black | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936B-1015-016A | M10 1.5 | 16mm | Rosette | Black | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936B-1015-016S | M10 1.5 | 16mm | Rosette | Black | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936B-1015-016Z | M10 1.5 | 16mm | Rosette | Black | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936B-1015-020A | M10 1.5 | 20mm | Rosette | Black | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936B-1015-020S | M10 1.5 | 20mm | Rosette | Black | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936B-1015-020Z | M10 1.5 | 20mm | Rosette | Black | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936B-1015-025A | M10 1.5 | 25mm | Rosette | Black | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936B-1015-025S | M10 1.5 | 25mm | Rosette | Black | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936B-1015-025Z | M10 1.5 | 25mm | Rosette | Black | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936B-1015-030A | M10 1.5 | 30mm | Rosette | Black | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936B-1015-030S | M10 1.5 | 30mm | Rosette | Black | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936B-1015-030Z | M10 1.5 | 30mm | Rosette | Black | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936B-1015-035A | M10 1.5 | 35mm | Rosette | Black | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936B-1015-035S | M10 1.5 | 35mm | Rosette | Black | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936B-1015-035Z | M10 1.5 | 35mm | Rosette | Black | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936G-1015-012A | M10 1.5 | 12mm | Rosette | Gray | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936G-1015-012S | M10 1.5 | 12mm | Rosette | Gray | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936G-1015-012Z | M10 1.5 | 12mm | Rosette | Gray | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936G-1015-016A | M10 1.5 | 16mm | Rosette | Gray | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936G-1015-016S | M10 1.5 | 16mm | Rosette | Gray | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936G-1015-016Z | M10 1.5 | 16mm | Rosette | Gray | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936G-1015-020A | M10 1.5 | 20mm | Rosette | Gray | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936G-1015-020S | M10 1.5 | 20mm | Rosette | Gray | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936G-1015-020Z | M10 1.5 | 20mm | Rosette | Gray | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936G-1015-025A | M10 1.5 | 25mm | Rosette | Gray | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936G-1015-025S | M10 1.5 | 25mm | Rosette | Gray | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936G-1015-025Z | M10 1.5 | 25mm | Rosette | Gray | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936G-1015-030A | M10 1.5 | 30mm | Rosette | Gray | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936G-1015-030S | M10 1.5 | 30mm | Rosette | Gray | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936G-1015-030Z | M10 1.5 | 30mm | Rosette | Gray | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936G-1015-035A | M10 1.5 | 35mm | Rosette | Gray | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936G-1015-035S | M10 1.5 | 35mm | Rosette | Gray | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936G-1015-035Z | M10 1.5 | 35mm | Rosette | Gray | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936N-1015-012A | M10 1.5 | 12mm | Rosette | Natural | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936N-1015-012S | M10 1.5 | 12mm | Rosette | Natural | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936N-1015-012Z | M10 1.5 | 12mm | Rosette | Natural | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936N-1015-016A | M10 1.5 | 16mm | Rosette | Natural | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936N-1015-016S | M10 1.5 | 16mm | Rosette | Natural | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936N-1015-016Z | M10 1.5 | 16mm | Rosette | Natural | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936N-1015-020A | M10 1.5 | 20mm | Rosette | Natural | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936N-1015-020S | M10 1.5 | 20mm | Rosette | Natural | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936N-1015-020Z | M10 1.5 | 20mm | Rosette | Natural | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936N-1015-025A | M10 1.5 | 25mm | Rosette | Natural | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936N-1015-025S | M10 1.5 | 25mm | Rosette | Natural | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936N-1015-025Z | M10 1.5 | 25mm | Rosette | Natural | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936N-1015-030A | M10 1.5 | 30mm | Rosette | Natural | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936N-1015-030S | M10 1.5 | 30mm | Rosette | Natural | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936N-1015-030Z | M10 1.5 | 30mm | Rosette | Natural | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936N-1015-035A | M10 1.5 | 35mm | Rosette | Natural | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936N-1015-035S | M10 1.5 | 35mm | Rosette | Natural | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936N-1015-035Z | M10 1.5 | 35mm | Rosette | Natural | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936R-1015-012A | M10 1.5 | 12mm | Rosette | Red | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936R-1015-012S | M10 1.5 | 12mm | Rosette | Red | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936R-1015-012Z | M10 1.5 | 12mm | Rosette | Red | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936R-1015-016A | M10 1.5 | 16mm | Rosette | Red | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936R-1015-016S | M10 1.5 | 16mm | Rosette | Red | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936R-1015-016Z | M10 1.5 | 16mm | Rosette | Red | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936R-1015-020A | M10 1.5 | 20mm | Rosette | Red | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936R-1015-020S | M10 1.5 | 20mm | Rosette | Red | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936R-1015-020Z | M10 1.5 | 20mm | Rosette | Red | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936R-1015-025A | M10 1.5 | 25mm | Rosette | Red | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936R-1015-025S | M10 1.5 | 25mm | Rosette | Red | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936R-1015-025Z | M10 1.5 | 25mm | Rosette | Red | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936R-1015-030A | M10 1.5 | 30mm | Rosette | Red | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936R-1015-030S | M10 1.5 | 30mm | Rosette | Red | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936R-1015-030Z | M10 1.5 | 30mm | Rosette | Red | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936R-1015-035A | M10 1.5 | 35mm | Rosette | Red | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936R-1015-035S | M10 1.5 | 35mm | Rosette | Red | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936R-1015-035Z | M10 1.5 | 35mm | Rosette | Red | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936Y-1015-012A | M10 1.5 | 12mm | Rosette | Yellow | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936Y-1015-012S | M10 1.5 | 12mm | Rosette | Yellow | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936Y-1015-012Z | M10 1.5 | 12mm | Rosette | Yellow | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936Y-1015-016A | M10 1.5 | 16mm | Rosette | Yellow | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936Y-1015-016S | M10 1.5 | 16mm | Rosette | Yellow | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936Y-1015-016Z | M10 1.5 | 16mm | Rosette | Yellow | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936Y-1015-020A | M10 1.5 | 20mm | Rosette | Yellow | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936Y-1015-020S | M10 1.5 | 20mm | Rosette | Yellow | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936Y-1015-020Z | M10 1.5 | 20mm | Rosette | Yellow | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936Y-1015-025A | M10 1.5 | 25mm | Rosette | Yellow | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936Y-1015-025S | M10 1.5 | 25mm | Rosette | Yellow | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936Y-1015-025Z | M10 1.5 | 25mm | Rosette | Yellow | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936Y-1015-030A | M10 1.5 | 30mm | Rosette | Yellow | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936Y-1015-030S | M10 1.5 | 30mm | Rosette | Yellow | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936Y-1015-030Z | M10 1.5 | 30mm | Rosette | Yellow | Zinc Plated | 38mm | 12.5mm | 19.5mm |
| 936Y-1015-035A | M10 1.5 | 35mm | Rosette | Yellow | Black Alloy Steel | 38mm | 12.5mm | 19.5mm |
| 936Y-1015-035S | M10 1.5 | 35mm | Rosette | Yellow | Stainless Steel 18-8 | 38mm | 12.5mm | 19.5mm |
| 936Y-1015-035Z | M10 1.5 | 35mm | Rosette | Yellow | Zinc Plated | 38mm | 12.5mm | 19.5mm |
Solicita más información de este Producto
